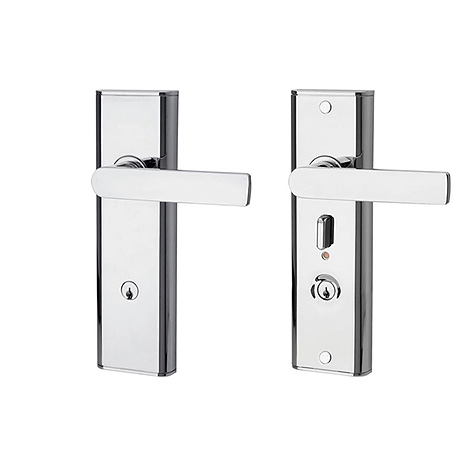

Lockwood Nexion® Mechanical Entrance Lockset

The Lockwood Nexion® Mechanical Entry Locksets represent the next generation in home security.

Designed and manufactured to the highest quality standard, the Lockwood Nexion range has set the benchmark for safety, security and style. The Nexion range of deadlatches offers the ultimate protection for your home and family.

The Lockwood Nexion® Mechanical Entry Locksets is available in two different plate styles Vision or Classic, and a range of lever styles, allowing you to achieve a consistent style throughout your home.

Additional information

Backset (mm)

60mm standard
70mm backset latch available as an accessory

Case

High purity zinc alloy

Cylinder

5 pin tumbler mechanism with 6 pin capability
Brass cylinders and brass barrels
Internal and external

Door Thickness

35 – 45 mm

Handing

Adjustable handing by set screw

Latch

13mm projection brass bolt

Strike

Box strike with concealed crossgrain door frame strengthening screw
